Merlinoite


Merlinoite		\|(K,Ca_0.5,Ba_0.5,Na)₁₀ (H₂O)₂₂\| [Al₁₀Si₂₂O₆₄]

Morphology:
	Pseudotetragonal prisms up to 4 mm, forming radiating groups or fibrous spheroidal aggregates.

Physical properties:
	Cleavage: not known. Hardness: not known. D = 2.14 to 2.27 gm/cm³. Luster: vitreous. Streak: white.

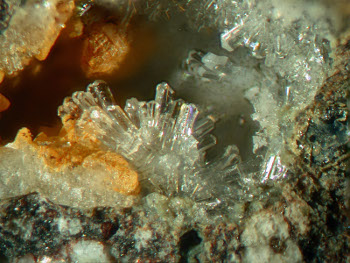

			Merlinoite crystals, about 1 mm long. Trapolino quarry (Cava Nuova) Monte Somma, Vesuvius, Naples, Italy.

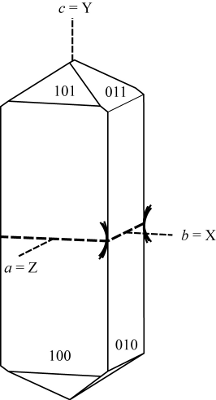

Optical properties:
	Color: colorless Biaxial (-). α = 1.499, β = 1.500, γ = 1.501, δ= 0.002, 2Vx = 56°. X = b, Y = c, Z = a, O.A.P. \|\| (001). Dispersion: r > v.

Crystallography:
	Unit cell data: a 14.116, b 14.229, c 9.946 Å. Z = 1, Space group Immm (Passaglia et al. 1977)



Name:
	Merlinoite was named and described by Passaglia et al. (1977). The type locality is the Cupaello Quarry cut into the host rock kalsilite melilitite near Santa Rufina, Rieti, Italy. The name honors Professor Stefano Merlino, Professor of Crystallography at the University of Pisa, Italy.

Crystal structure:
	Merlinoite is pseudo-tetragonal, space group I4/mmm, but the true structure in orthorhombic Immm. The framework consists of chains of doubly connected 4-rings in a crankshaft arrangement and has a random (Si,Al) distribution. Channels are confined by eight-membered rings, parallel to the a-axis (aperture 3.5 x 3.1 Å) and the b-axis (aperture 5.1 x 2.7 Å). Eight-membered double and single rings delimit channels (aperture 5.1 x 3.4 Å and 3.3 x 3.3 Å) parallel to the c-axis. The double crankshafts are also parallel to the c-axis. (For drawings of the framework see MER ).

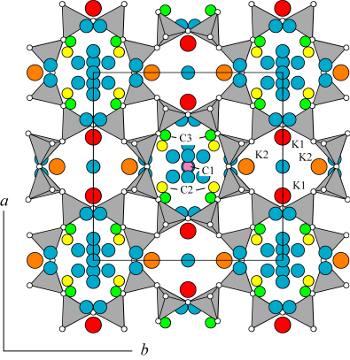

	The following cations sites were determined by Galli et al. (1979): The C1 (pink) site is about 30% occupied by Ca²⁺ and Na⁺; while C2 (yellow) and C3 (green) are about 20% occupied by Na⁺, Ca²⁺, K⁺, and Ba²⁺. The Kl (red) and K2 (orange) sites are in the other channels, and each are 46% occupied mostly by K⁺ and minor Ba²⁺. Two fully occupied and six partially occupied H₂O sites have also been located by Galli et al. (1979).


Chemical composition:

Merlinoite is difficult to analyze, especially for the channel elements. The original analysis of merlinoite from Cupaello, Rieti, Italy, and the analysis of merlinoite from Khibina Massif, Russia have sizable charge balance errors. A more recent analysis of merlinoite from near Sacrofano, Italy (Della Ventura et al. 1993) is better, but all analyses lack sufficient alkali metals to provide perfect charge balance. Although these analyses indicate K and Ca are the dominant cations, merlinoite from other environments may lack Ca completely. Merlinoite from the Khibina massif contains a substantial amount of Ba, 3 atoms per formula unit, (Baturin et al. 1985). Donahue et al. (1984) found merlinoite in drill core from Searles Lake, California, where the intimate mixture with phillipsite did not allow analysis, but energy dispersive spectra of both minerals indicate only K and Na are present. Furthermore, synthetic merlinoite (Zeolite W) is most easily made K-rich with minor Na (Donahoe et al. 1984). Therefore, we write the generalized formula to suggest that K is dominant and other cations may occur in any order of abundance.


Identification:
	Distinguishing merlinoite from phillipsite is a major problem, and can only be accomplished with careful interpretation of X-ray powder diffraction patterns. Donahoe et al. (1984) suggest that many phillipsite occurrences in sediment or sedimentary rock may in fact be wholly or partly merlinoite. Diagnostic X-ray reflections for phillipsite are 6.4, 4.13, and 3.15Å, and those for merlinoite are 10 and 4.5Å. In samples in which the zeolite is diluted by co-existing clay, critical peaks may be difficult to detect above the background. Furthermore, in many sediment samples, particularly those from the deep sea, co-existing illite with the major peaks at 10, 4.46, 3.88, and 3.10Å easily mask merlinoite (Deer et al. 2004).
Occurrences:
	Merlinoite has been reported from very few localities, in part because it is so easily mistaken for phillipsite. Its occurrence in basaltic deep sea sediment, in the saline and alkaline Searles Lake, California, and in nepheline basalt cavities shows that special chemical environments are necessary for crystallization. Diagenesis of sediment and sedimentary rocks. Merlinoite has been identified in deep sea sediment or nodules in two different settings. It was first found in manganese nodules in the Indian Ocean (Mohapatra and Sahoo 1987), where it replaces pyroclastic fragments. Merlinoite occurs with smectite and phillipsite in pore spaces of Late Miocene vitric sandstone at a depth of 171 m below the sea floor at Site 841 (Ocean Drilling Program) at the Tonga arc edge (Vitali et al. 1995, Tazaki and Fyfe 1992). Guided by experimental work that indicated merlinoite crystallizes readily from potassic, alkaline solutions, Donahoe et al. (1984) studied the zeolite in ashy layers in the sediment of Searles Lake, California, a playa lake deposit with potassic brines (Smith et al. 1983). They found merlinoite with phillipsite in two ash beds at the 41 and 42 m levels of the 915 m KM-3 drill core. Ash beds from deeper levels contain clinoptilolite, analcime, and K-feldspar (Hay and Guldman 1987). Energy dispersive spectra of coexisting merlinoite and phillipsite indicate that the Si/Al contents are about the same and that merlinoite has a higher K but lower Na content than phillipsite. Cavities in basaltic lava. Merlinoite occurs in cavities of a few weakly altered, glassy alkaline-basaltic lavas. At the type locality, it occurs in veinlets cutting the kalsilite melilitite exposed in Cupaello Quarry near Santa Rufina, Rieti, Italy (Passaglia et al. 1977). Tiny spherical aggregates of merlinoite are associated with apophyllite, phillipsite, calcite, and chabazite. Della Ventura et al. (1993) describe the merlinoite occurring in ejecta from Fosso Attici near Sacrofano north of Rome. The merlionite here occurs as pseudotetragonal prisms up to 5 mm in length. In their paper describing amicite as a new mineral Alberti et al. (1979) mention the associated merlinoite. These zeolites occur in veins cutting the Tertiary melilite-nepheline basalt and pyroclastic rock of the volcano at Höwenegg, Hegau, Germany. Merlinoite occurs in the tiny vesicles of a sintered sandstone xenolith in the alkali olivine basalt at the Ortenberg quarry, Vogelsberg, Hessen, (Hentschel 1986). It has also been found at the contact between basalt and sediments at Halbinsel Tjornes on the north coast of Iceland (Schnorrer-Köhler 1990). Deuteric alteration. Khomyakov et al. (1981) report the occurrence of merlinoite in hydrothermally altered cataclastic pegmatoid rocks in the Vuonnemiok River valley, Khibina massif, Kola Peninsula, Russia. It occurs as irregular grains and subhedral equant crystals in association with pectolite, catapleiite, astrophyllite, lamprophyllite, fibrous lorenzenite, aegerine, and fluorite.
